Jeep Timing Chains: Troubleshooting & Replacement

Jeep vehicles, known for their durability and off-road capability, require regular maintenance to perform optimally. Among the crucial components requiring attention is the timing chain. This component is pivotal in synchronizing the crankshaft and camshaft rotations, ensuring the engine's valves open and close at the correct times during each cylinder's intake and exhaust strokes. Understanding the symptoms of a failing timing chain, how to troubleshoot these issues, and the steps involved in replacing one are vital for maintaining your Jeep's performance and longevity.

Understanding Timing Chain Functionality

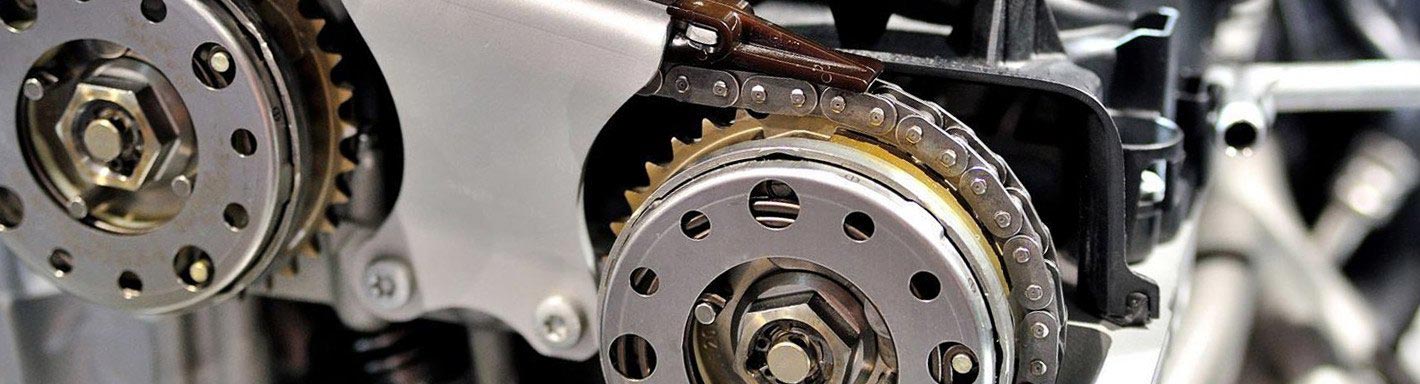

The timing chain is a metal chain, unlike a timing belt, which is made from rubber. It is designed to be more durable and lasts longer but isn't immune to wear and tear. The chain runs inside the engine and is lubricated by engine oil. Regular oil changes are essential to keep the timing chain in good working order.

Symptoms of a Failing Timing Chain

The timing chain is a critical engine component in Jeep vehicles, responsible for keeping the engine's internal components working in perfect synchrony. When this part begins to fail, it can manifest through various symptoms, which Jeep owners should recognize promptly. Addressing these symptoms early can prevent more severe engine problems and costly repairs.

Engine Misfires or Runs Poorly

One of the first signs of a timing chain problem may be the engine's performance, specifically if it begins to misfire or run poorly.

The timing chain's primary role is to coordinate the movements of the crankshaft and camshaft. This synchronization is disrupted if the chain stretches or wears out, affecting the engine's timing. When the timing is off, the valves may open and close at incorrect times, leading to inefficient combustion of the fuel-air mixture. This inefficiency can cause the engine to misfire, which is felt like a rough running engine or noticeable power and fuel efficiency reductions.

Diagnostic Tips

To confirm a timing issue, a mechanic might use a diagnostic scan tool to check for misfire codes or use a timing light to visually inspect the timing marks on the crankshaft and camshaft pulleys. Observing whether these marks align as they should can help determine if the timing chain is at fault.

Metal Shavings in the Oil

Metal shavings in the engine oil can be a telltale sign of internal wear, and the timing chain could be a culprit.

As the timing chain wears, it can generate metal debris from the chain itself or the gears it runs on. These metal shavings can then mix with the engine oil. During an oil change or maintenance check, these fine particles can be an alarming sign that the timing chain is degrading.

Diagnostic Tips

Regular oil analysis can help detect these shavings early. If shavings are found, it is advisable to inspect the timing chain and related components, such as the tensioner and guides, for any signs of excessive wear.

Rattling Noises from the Engine

A rattling noise from the engine area can indicate a loose or damaged timing chain.

A chain tensioner is supposed to maintain a certain amount of tension on the timing chain. Over time, the tensioner can fail, or the chain can stretch, leading to slack. This slack allows the chain to whip back and forth, particularly at lower speeds or when starting the engine, resulting in a rattling or clanking sound.

Diagnostic Tips

To pinpoint the cause, listen for the noise when the engine starts or when idling. The noise often worsens with engine speed. A visual inspection under the timing chain cover can confirm whether slack in the chain is the issue.

Check Engine Light

The check engine light is a broad indicator that can illuminate for numerous reasons, including a problem with the timing chain.

If the timing chain issues cause the engine to run inefficiently, various sensors throughout the engine, such as the camshaft or crankshaft position sensors, may trigger the check engine light. These sensors can detect when the engine's timing is off and send error codes to the engine's computer system.

Diagnostic Tips

When the check engine light comes on, the first step should be to use an OBD-II scanner to read the trouble codes from the vehicle's computer. Codes related to "camshaft position timing" or similar can indicate issues with the timing chain.

Understanding these symptoms and addressing them promptly through professional diagnosis and repair can help maintain the robust performance and reliability of Jeep vehicles, ensuring they are ready for any adventure.

Troubleshooting Tips

To accurately diagnose a timing chain issue, follow these steps:

1. Visual Inspection: Check for any obvious signs of wear or damage to the timing chain. This may require removing the timing cover.
2. Oil Analysis: Look for metal shavings in the oil, which can indicate timing chain wear.
3. Engine Diagnostic: Use a diagnostic scanner to check for any error codes that could suggest a timing chain problem.
4. Manual Testing: Manually rotate the crankshaft and camshaft to check the timing chain's tension and alignment.

Tools and Materials Needed for Replacement

• New timing chain kit (includes the chain, gears, and possibly new tensioners and guides)
• Basic hand tools (ratchets, sockets, screwdrivers)
• Torque wrench
• Gasket material or replacement gaskets
• Engine oil and coolant
• Service manual for your specific Jeep model

Step-by-Step Guide to Replacing a Jeep Timing Chain

1. Preparation: Disconnect the battery and drain the engine oil and coolant. Remove any components obstructing the timing chain cover access, such as the radiator or fan assembly.
2. Remove the Timing Cover: Carefully remove the timing cover, ensuring it does not damage the gasket surface. Inspect the inside for any signs of wear or damage.
3. Mark Timing Positions: Before removing the old timing chain, mark the position of the gears to ensure the new chain will be installed in the exact same alignment.
4. Remove the Old Timing Chain: Unbolt the tensioner and slide out the old chain and gears. Be cautious of any parts that are under tension.
5. Install the New Timing Chain: Place the new chain and gears into position, aligning them with the marks made earlier. Apply new tensioners and guides if included in your kit.
6. Reassembly: Replace the timing cover with a new gasket and reinstall any removed components.
7. Refill Fluids: Refill the engine with fresh oil and coolant.
8. Testing: Reconnect the battery and start the engine. Listen carefully for any unusual noises and ensure the engine reaches normal operating temperature without issues.
